ADAS recalibration adjusts and verifies supported vehicle cameras and sensors according to the required specifications. It may be needed after windshield replacement or other work that affects sensor position, camera view, or vehicle geometry.
Advanced Driver Assistance Systems, or ADAS, are built into many late-model vehicles to help drivers avoid hazards, maintain safer following distances, and stay aware of what is happening around them. Features such as automatic emergency braking, adaptive cruise control, and lane keeping assistance rely on cameras, radar, and other sensors to interpret the vehicle’s surroundings.
When windshield replacement or another vehicle repair affects one of these systems, ADAS recalibration may be required to help it continue working as the vehicle manufacturer intended.
Chip’s Auto Glass provides windshield replacement and static and dynamic ADAS recalibration for supported vehicles. Our team identifies the applicable procedure and explains what the vehicle requires before completing the service.

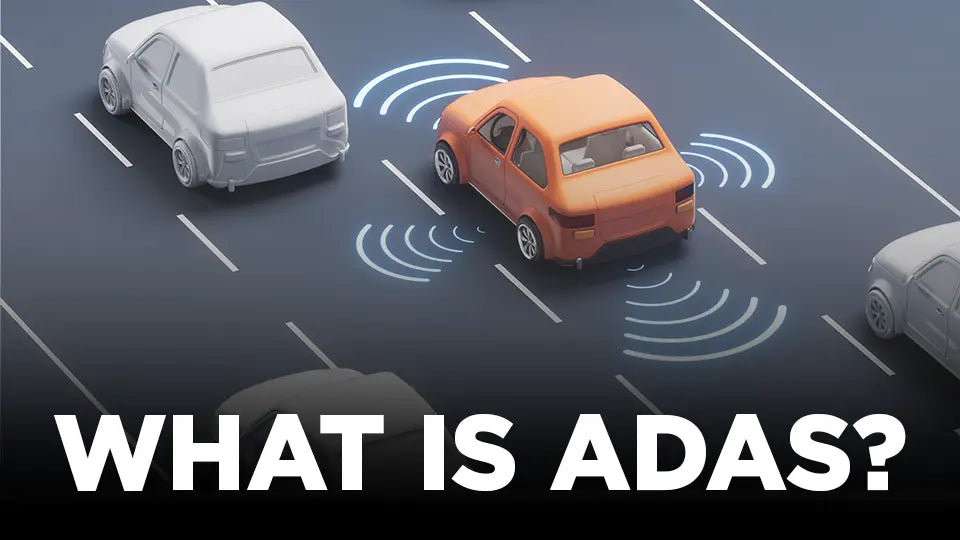

What Is ADAS?
ADAS refers to a group of vehicle technologies designed to assist the driver. These systems can provide warnings, monitor surrounding traffic, and, in some cases, provide steering or braking assistance.
ADAS supports the driver. It does not replace one. Drivers are still responsible for staying alert and maintaining control of the vehicle.
Common ADAS features include:
- Adaptive Cruise Control: Helps maintain a set following distance from traffic ahead.
- Lane Departure Warning: Alerts the driver if the vehicle begins to drift from its lane.
- Lane Keeping Assistance: Can provide corrective steering input to help prevent unintended lane departure.
- Blind Spot Monitoring: Watches areas beside the vehicle that can be difficult to see.
- Rear Cross-Traffic Alert: Warns of approaching traffic while backing up.
- Forward Collision Warning: Alerts the driver to a potential frontal collision.
- Automatic Emergency Braking: Can automatically apply the brakes to help avoid or reduce the severity of a collision.
- Around-View Monitoring and Night Vision: Available on select vehicles to provide additional visibility around the vehicle.
How Does ADAS Work?
ADAS relies on sensors positioned throughout the vehicle to collect information about the road, surrounding traffic, and nearby objects.
Windshield-mounted cameras can identify lane markings, vehicles, and other objects ahead. Radar sensors can measure the distance and relative speed of vehicles in front of or beside the vehicle. The vehicle processes information from these systems to determine when a warning or driver-assistance feature should activate.
ADAS camera and sensor position matters because these systems rely on accurately aimed equipment to interpret the vehicle’s surroundings. A change in position may affect how a supported feature detects lane markings, vehicles, or nearby objects.
That is why ADAS recalibration can be an important part of certain windshield and vehicle repairs.
Why Does ADAS Recalibration Matter?
Accurate recalibration matters because ADAS features rely on correctly positioned cameras and sensors to interpret the vehicle’s surroundings.
A forward-facing camera is often mounted near the rearview mirror and looks through the windshield. During windshield replacement, that camera may need to be removed, or its position and viewing angle may be affected.
Recalibration may be needed after:
- Windshield replacement involving an ADAS camera
- Body panel replacement or repair
- Front-end collision repair
- Wheel alignment
- Certain suspension changes
Consider a four-wheel alignment. Alignment has always been about precision. Small changes in wheel angles can affect how a vehicle drives, handles, and wears its tires.
On certain vehicles, that precision can also matter to ADAS. Some systems use information about the vehicle’s position and direction to interpret what is happening around it. Depending on the vehicle, an alignment or another change to vehicle geometry may require an ADAS system to be checked or recalibrated.
It is a good example of how traditional automotive service and modern vehicle technology are becoming more connected. The tools may be changing, but the principle remains the same: measure precisely, follow the correct procedure, and do the job right.
The exact recalibration requirements vary by vehicle, installed system, and manufacturer procedure. The correct process should be identified for the specific vehicle before calibration begins.
What Is Static vs. Dynamic ADAS Calibration?
There are two common approaches to ADAS recalibration: static and dynamic. Some vehicles may require one method, while others may require a combination of both.
Static calibration is completed while the vehicle remains stationary. The process uses specialized calibration equipment to help reset or verify the position of supported ADAS cameras and sensors.
Dynamic calibration involves operating the vehicle while the ADAS system completes a prescribed calibration process.
Which method is required depends on the vehicle and the system being serviced. There is no single calibration process that applies to every vehicle.
Chip's Auto Glass performs both static and dynamic ADAS recalibration, allowing technicians to service the different calibration requirements found across today's vehicles.
Does Windshield Replacement Require ADAS Calibration?
Not every windshield replacement requires ADAS recalibration. The requirement depends on the vehicle, its installed technology, and the applicable manufacturer procedure. Recalibration may be required when the replacement windshield is associated with a forward-facing ADAS camera.
On many newer vehicles, a forward-facing ADAS camera is mounted near the rearview mirror and looks through the windshield. This camera may support forward collision warning, automatic emergency braking, adaptive cruise control, lane departure warning, and lane keeping assistance.
Windshield replacement can affect the camera’s mounting position or viewing angle. When that happens, recalibration may be required as part of the replacement process.
The windshield is more than a piece of glass on many modern vehicles. It can provide the viewing area and mounting location for technology connected to important driver-assistance features.
That is why replacing an ADAS-equipped windshield involves more than removing damaged glass and installing a new windshield. The technician must also account for the technology connected to it.
Chip's Auto Glass ADAS Recalibration
Chip's Auto Glass combines auto glass service with the technology and expertise required to work with modern driver-assistance systems.
Our Triple-certified technicians provide both static and dynamic ADAS recalibration across all makes and models. Chip's works with forward-facing cameras, radar-based systems, and other supported ADAS technologies, including systems used for adaptive cruise control, lane departure warning, blind spot detection, rear collision warning, around-view monitoring, and night vision on equipped vehicles.
If your windshield needs to be replaced, our team can review your vehicle's ADAS equipment and determine the appropriate recalibration requirements for the repair.
From the windshield itself to the technology connected to it, our goal is to complete the work correctly and explain the process clearly along the way.
Need windshield replacement or ADAS recalibration? Contact Chip's Auto Glass to check availability and request a quote.
